Description

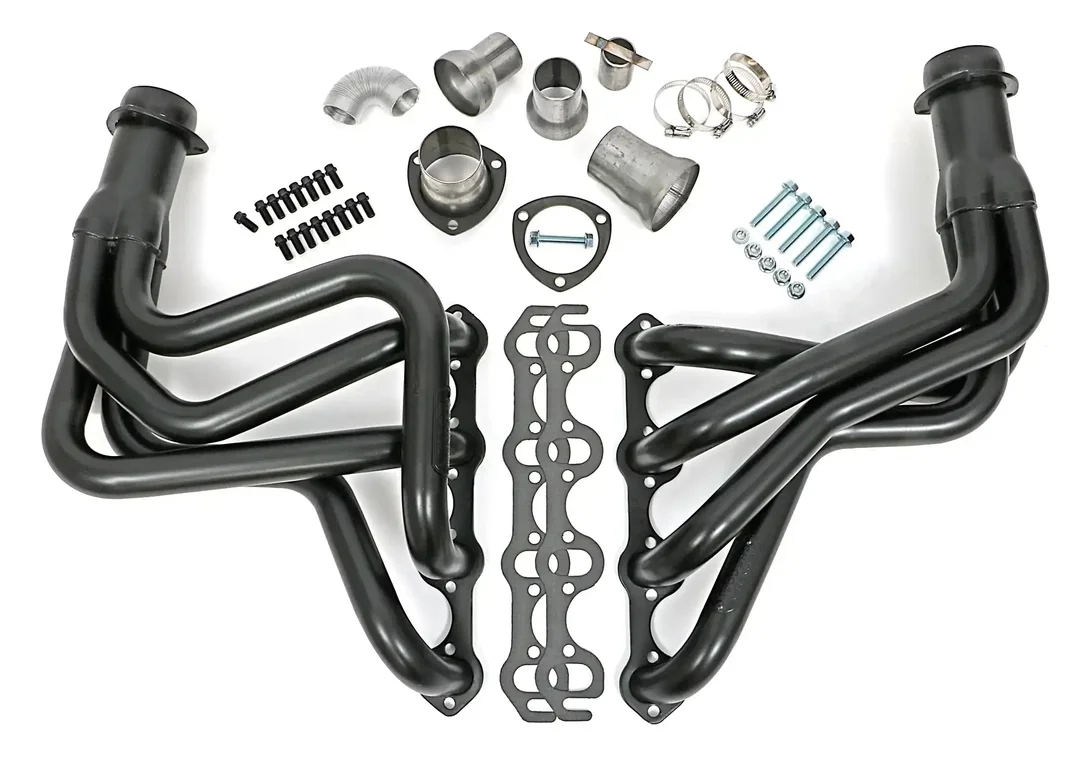

Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they’ve been manufacturing Ford truck headers decades. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman’s unique, gasketless ball and socket collector design allows your exhaust system to bolt up to these Ford Windsor block headers, even if it is not perfectly aligned with the header collectors.
These uncoated, LONG-TUBE headers fit 1969-79 Ford 1/2 ton, 2WD Trucks with a Small-Block Ford 289-302W engine. These headers have been successfully tested and assigned E.O. number D167-27 by C.A.R.B., making them 50-state legal on the emissions-controlled 1975-1979 models without A.I.R. System. The long, smooth-flowing 1-5/8 in. oval port tube design provides excellent exhaust flow to let your Ford truck’s SB Ford engine exhale, and produce excellent horsepower and torque. They fit manual and auto transmissions, but not for use on Camper Special models, or trucks with a lift kit.
These headers are uncoated, and ship from the factory with a temporary black paint that will burn off when submitted to normal operating temperatures. For protection against the element and lower underhood temperatures, these headers are also available with a silver or black ceramic-metallic finish.
Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.
Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty.
Specifications:
| Finish Type | Uncoated Mild steel |
| Flange Style | Standard |
| Replacement Head Flange Gasket | 27700 |
| Header Port Shape | Oval Port |
| Manual Transmission – Column | Yes |
| Manual Transmission – Floor | Yes |
| Material | Mild Steel |
| Port Shape | Oval |
| Power Steering | Yes |
| Reducer Outlet Size | 2-1/2 in. |
| Tube Diameter | 1-5/8 in. |
| Tube Length | Long Tubes |
| Tube Size | 1-5/8 in. |
| Variations | 89156, 89158 |
| Cylinder Head Port Shape | Oval |
| Header Finish | Uncoated |
| Header Material | Mild Steel |
| Mounting Hardware Included | Yes |
| Tuned | No |
| Weld-Up | No |
| Collector Bolts Included | Yes |
| Catalytic Converter(s) Included | No |
| Crossover Pipe Included | No |
| Motor Mounts Included | No |
| Quantity | Sold as a pair. |
| Cylinder Head | Stock Profile Heads |
| Replacement Gasket | 27700 |
| Installation Hardware Included | Yes |
| with A.I.R. System | No |
| with EGR | No |
| Y-Pipe Included | No |
| Collector Attachment | 3 in. |
| Header Construction | MILD STEEL- Standard-Duty |
| E.O. # | Yes |
| California Proposition 65 | WARNING: Cancer. For more info visit |
| Engine Version | Ford Windsor Block (W) |
| Contents | headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware |
| Title | HEDMAN HEDDERS STANDARD UNCOATED HEADERS; 1-5/8 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN |
| Notes | 69-79 Ford 1/2 Ton Trucks; 2WD 302 |
| Collector Diameter | 3 in. |
| Primary Tube Diameter (in) | 1.625 in. |
| Tube Style | Long Tubes |
| Package Contents | Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware |
| Tube Material Thickness | 16g |
| Primary Tube Gauge | 16g |
| Flange Thickness | 0.3125 in. |
| Tube Design | Standard |
| Footnotes | 138. Will not fit Camper Special or vehicles equipped with front sway bar. |
| Footnotes | 228. Will Not Work with Lift Kits. |
| Footnotes | 6. Modification to stock exhaust required to retain catalytic converter. |
| Drivetrain | 2WD Only! |
| Header Fasteners Included | Yes |
| Bolts/Studs Included | Yes |
| Gasket Or Seal Included | Yes |
| Header Style | Long Tube |
| Reducers Included | Yes |
| Air Conditioning | Yes |
| Automatic Transmission – Column | Yes |
| Automatic Transmission – Floor | Yes |
| Collector Size | 3 in. |
| Collector Style | BALL and SOCKET Style (Gasketless) |
| Emissions Notes | EO# D167-27 (click here for covered vehicles in document on website) |
| Exhaust System Dia | 2-1/2 in. |
| Finish | Uncoated |
