Description
Product

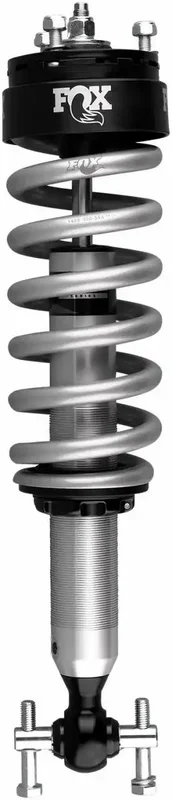

Our bolt-on, Performance Series Coil-over IFP shock is loaded with advanced technology and a long list of features that set it apart. The precision, metal impact extruded aluminum body increases cooling capacity and is rust resistant. The vehicle-specific upper mount includes a composite bushing that isolates noise and vibration. Locking, spring preload rings that allow easy ride height and preload adjustment retain a top quality racing coil, selected to deliver the optimal spring rate. Performance Series Coil-Over IFP shocks bolt on with no modifications and are designed to level your truck front-to-rear. Applications are available for stock and lifted trucks that re-use the stock shock. Inside is an internal reservoir with Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving. The easy-to- install, 2.0 Performance Series Coil-over IFP provides a comfortable on-road ride and predictable off-road handling in even the toughest conditions.
Attributes
- Adjustable: Yes
- Valving Type: Application Specific Valving
- Shock Type: Hydraulic
- Upper Mounting Type: Stud
- Lower Mounting type: Eyelet
- Front/Rear Drop (IN): 0 To 2 Inch Lift
- Extended Height (IN): 18.960 Inch
- Compressed Height (IN): 14.890 Inch
- Shock Body Color: Black/ Silver
- Shock Body Material: Steel
- Quantity: Single
- Spring Height (IN): Application Specific
- Spring Rate: Not Applicable
- Spring Style: Single Flat End Coil
- Spring Finish: Powder Coated
- Spring Color: Silver
- Spring Material: Steel
Features & Benefits
- 2.0 Inch Metal Impacted 6061-T6 Aluminum Body Will Resist Rust Over Time. Clear-Anodized For A Durable Finish
- Internal IFP Mono-Tube Reservoir Design Separates Shock Oil From The High-Pressure Nitrogen
- Black-Anodized, CNC-Machined 6061-T6 Billet Aluminum Components. 5/8 Inch Hard Chrome Plated Heat-Treated Alloy Steel Shaft
- Race-Developed High-Flow Piston Design. Application Specific Valving To Maximize Performance
- Redundant Sealing Pack System Main Seal, Wiper Seal, Scraper Seal
- JM92 Advanced Suspension Fluid For Improved Performance At Variable Temperatures
- Easy-To-Install
- Limited 1 Year Factory Warranty And Limited 90 Day Valving Warranty
Installation Instructions
- 605-01-066_REV_F.pdf
Technical Bulletins
- FOX_TRUCK_2.0PSIFP_Exploded_A.pdf
- FOX_TRUCK_2.0PSIFP_Exploded_A.pdf
- FOX_TRUCK_2.0PSIFP_Exploded_A.pdf
