Description
Product
Smart off roaders know Factor 55 products are designed and manufactured using state of the art technologies. All of our products are designed using SolidWorks CAD systems and stress analyzed using COSMOS Finite Element Simulation software. The FEA or Finite Element Analysis results allow us to optimize a design concept by adding or removing material or changing material properties where necessary.

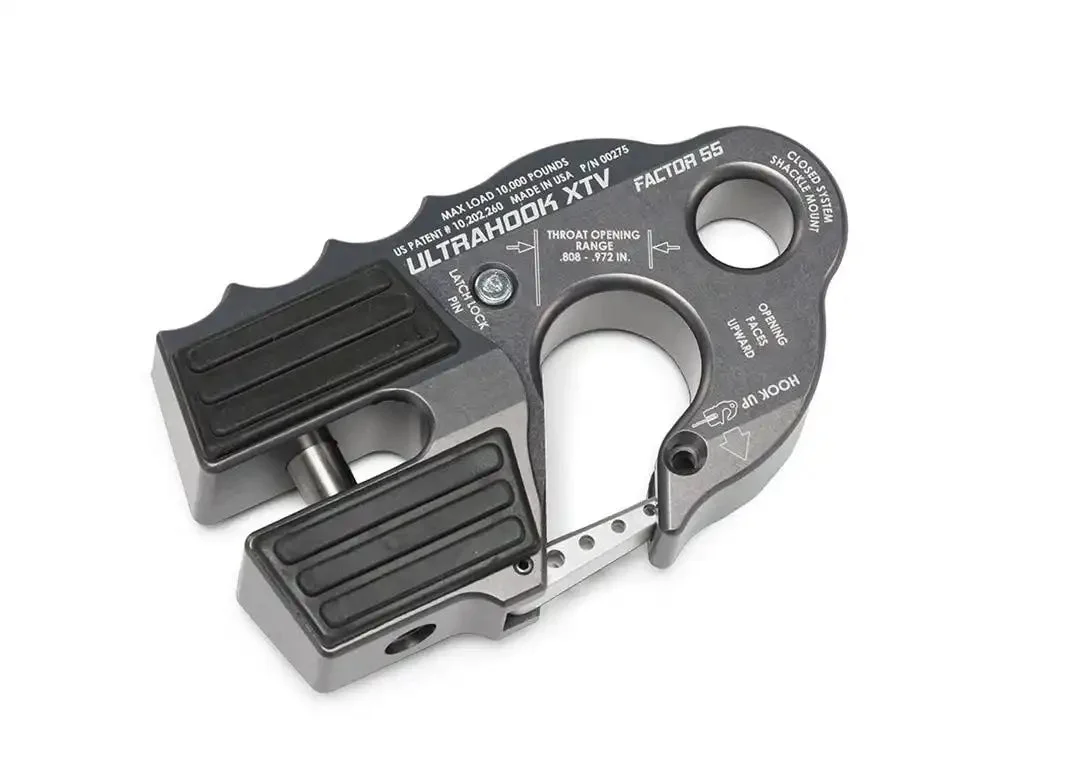

Winch Clevis Hook; UltraHook XTV; For Use Wich Wiches Rated 4500 Pounds or Less; For Up To 5/16 Inch Diameter Rope Or Cable; With Shackle Pin Mounting Hole For 3/4 Inch Pin; 7/16 Inch Diameter Double Sheer Pin; 10000 Pounds Max Load Capacity/ 21000 Pound Breaking Strength; Gray; Aluminum; Single
Features & Benefits
- Shackle Pin Mounting Hole Accepts Screw Pins From Common 5/8 Inch Shackles
- Max Rated Load – 10,000 Pounds And Breaking Strength – 21,000 Pounds
- Industry First Closed System Shackle Mount Hole Machined Into The Body Of The Hook
- Safety Latch Retraction Pocket Resulting In A Clear Throat Opening
- Integrated Secondary Safety Latch Locking Feature-Latch Locking Pin Stored In The Body Which Can Be Removed And Inserted In To The Hook Tip, Locking The Latch Into Place
- EPDM Rubber Pads For Fairlead Protection
- Finger Grip Feature That Promotes Proper “Hook Up” Orientation
- Limited 1 Year Warranty
Attributes
- Shackle Pin Size: 3/4 Inch
- Rope Diameter: 5/16 Inch
- Maximum Load Capacity: 10000 Pound
- Color: Gray
- Material: Aluminum
- Estimated Install Time (Hours): 0.25
Technical Bulletins
- F55_XTV_ProductGuide.pdf
