Description

Attributes

• Shackle Type: 3/4 Inch Screw Pin Shackles
• Cable Type: Synthetic Winch Rope
• Load Capacity (LB): 16000 Pound
• Shear Pin Size (IN): 5/8 Inch
• Finish: Anodized
• Color: Green
• Material: Aluminum
• With Guard: No

Product

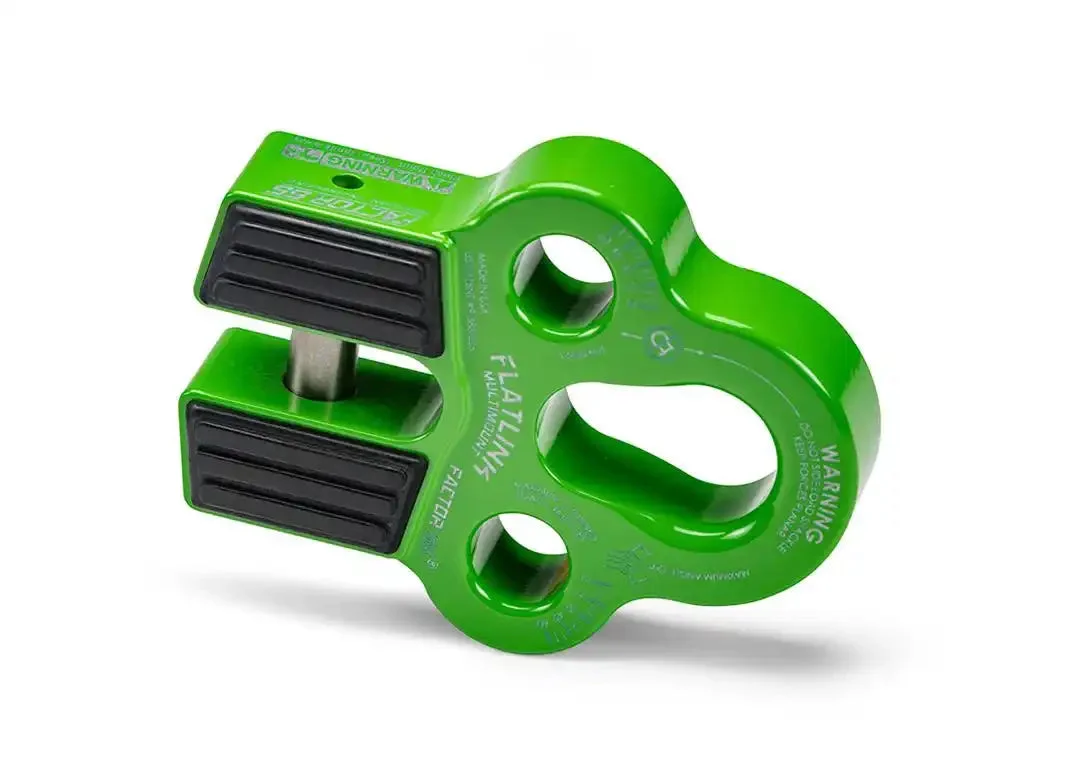

Factor 55 eliminate the conventional winch hook and replace it with a safer and stronger FlatLink shackle thimble and D-ring. The FlatLink shackle mount is the Industry’s first folding shackle mount for recovery winch. With less than 1-3/4 Inch of thickness, the Flatlink will work with all roller fairlead license plate mounting brackets. Conventional winch hooks can cut and fray recovery straps and often allow strap ends to escape during momentary slack cycles of a typical winching recovery. Screw pin shackles do not allow strap loops to escape due to the secure screw pin attachment. The FlatLink does not require splicing and is compatible with steel cables or synthetic ropes up to 3/8 Inch in diameter. The cable eye is retained in the FlatLink by a 5/8 Inch diameter grade 5 steel double shear pin and internal snap ring. It is installed easily in minutes. The EPDM Rubber Guards protect alloy fairleads and are securely attached to the FlatLink with 4 barbed tips.

Features & Benefits

• Replace Conventional Winch Hooks With A Safer More Secure Shackle Or D-Ring; Multiple Shackle Interface For Bridle And Off-Camber Towing
• Lightweight – Precision CNC Machined 6000 Series Aluminum; No Splicing Required – Titanium Double Shear Pin Design
• Designed For Both Steel Cables And Synthetic Winch Ropes
• For Rope And Cable Diameters Up To 3/8 Inch
• Oval Hole Opening Connects To The Pin Ends Of 7/8 Inch And 1 Inch Screw Pin Shackles
• Oval Hole Opening Connects To Either The Pin Or Bow End Of Common 3/4 Inch Screw Pin Shackles
• Integrated EPDM Rubber Pads For Fairlead Protection
• Foldable: 1.75 Inch Thick and Compatible With All Fairlead License Plate Mounting Brackets
• Fits Multiple 3/4 Inch Screw Pin Shackles; Fits Over Most OEM Tow Hooks
• Limited 1 Year Warranty
